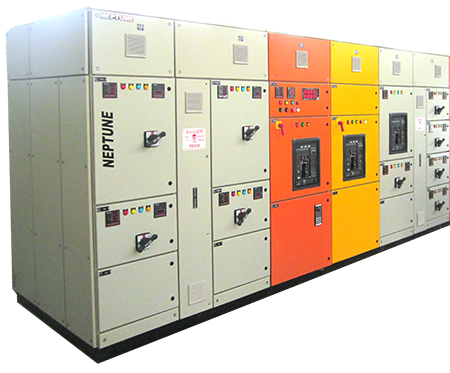

Switchboard assemblies used for synchronising two or more DG into the system. When the DG is started and brought to operating voltage and frequency it needs to be paralleled at the right moment in order to be able to share the loads of the system.
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Fire/Alarm/Security
- Government
- Healthcare
- Manufacturing
- Power Generation
- Power/Gas Transmission and Distribution
- Retail and Wholesale
- Telecom
- Fully bolted structure
- Ease in handling, transportation and maintenance
- Single front & double front construction.
- Doors can be hinged on either side offering greater flexibility to configure the panel as per the site conditions.
- Manual PLC / DIEF / Woodword Relay based DG Synchronization and Load Management
- Provision for BMS Compatibility.
- Single Point access for all incoming / outgoing feeder parameters through HMI display.
| Parameters | SPECIFICATIONS |
|---|---|
| Rated Operation Voltage | 3Phase, 415 V AC |
| Rated Frequency | 50 Hz |
| Auxiliary Supply | 24V / 110V DC, 230V AC |
| Form of segregation | Form-3b / form-4b |
| Degree of Protection | IP 54 / IP 55 |
| Metal Sheet Thickness | 2mm |
| External Surface Protection | Epoxy Powder Polymerized at High Temperature |
| Painting Thickness | more than 60 micron |
| Standard Colour | Grey RAL 7035 |
| Bus bar Supports | SMC / DMC / FRP |
| Standard Depth of Switchboards | 800 / 1000 / 1200 mm |
| Standard Feeder Width | 600 / 800 / 1000 mm |
